Automatic Irrigation Solution For Plants Grown in Substrate Bags

The two most important factors for the growth, yield, and quality of plants grown in substrate bags are nutrition and irrigation.

Most plants in substrate bags rely primarily on passive nutrition, with nearly all nutrients delivered through the irrigation water.

The irrigation soluton for plants in substrate bags determines both the moisture supply to the substrate and the nutrient delivery to the plants.

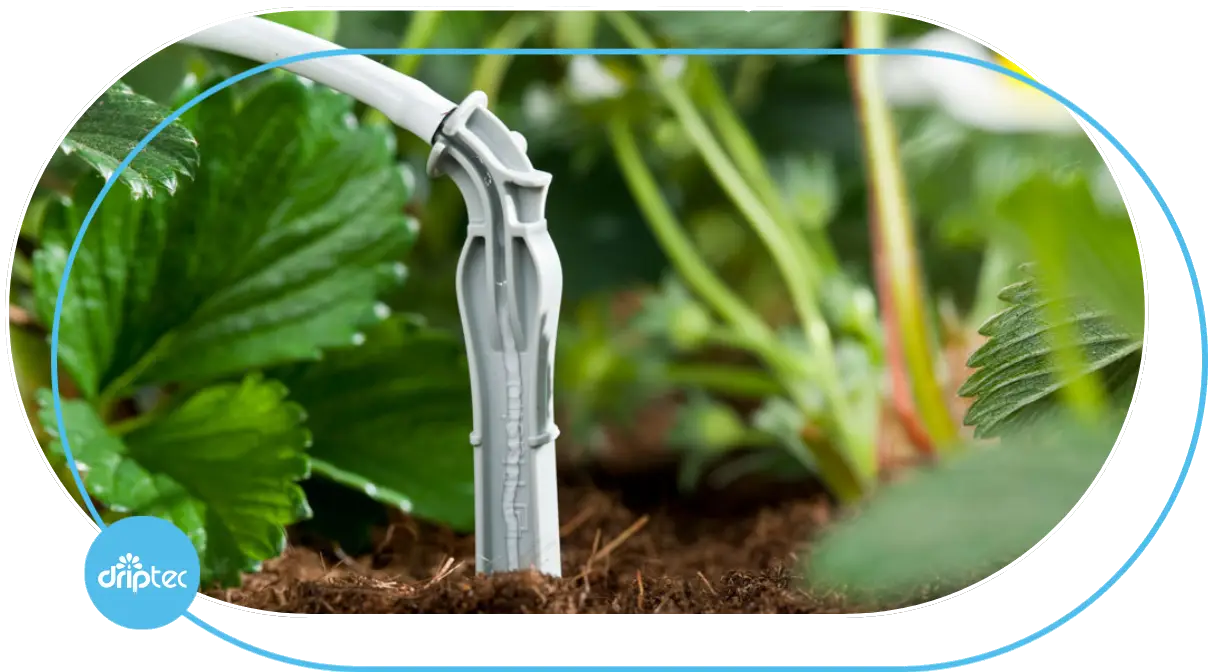

Giải pháp tưới cây trong túi giá thể -Automatic Irrigation Solution For Plants Grown in Substrate Bags

Automatic Irrigation Solutions for Plants Grown in Substrate Bags

For crops grown in substrate bags such as melon, strawberry, cherry tomato, bell pepper, and various flowers, the only suitable and economically efficient irrigation method commonly applied is drip irrigation using driptec stream driper, also known as drip pins.

BENEFITS OF Driptec Stream dripper IRRIGATION

  • Fertilizers and nutrients can be delivered through irrigation.

  • Irrigation can be divided into multiple small sessions throughout the day.

  • Moisture levels in the substrate can be effectively controlled.

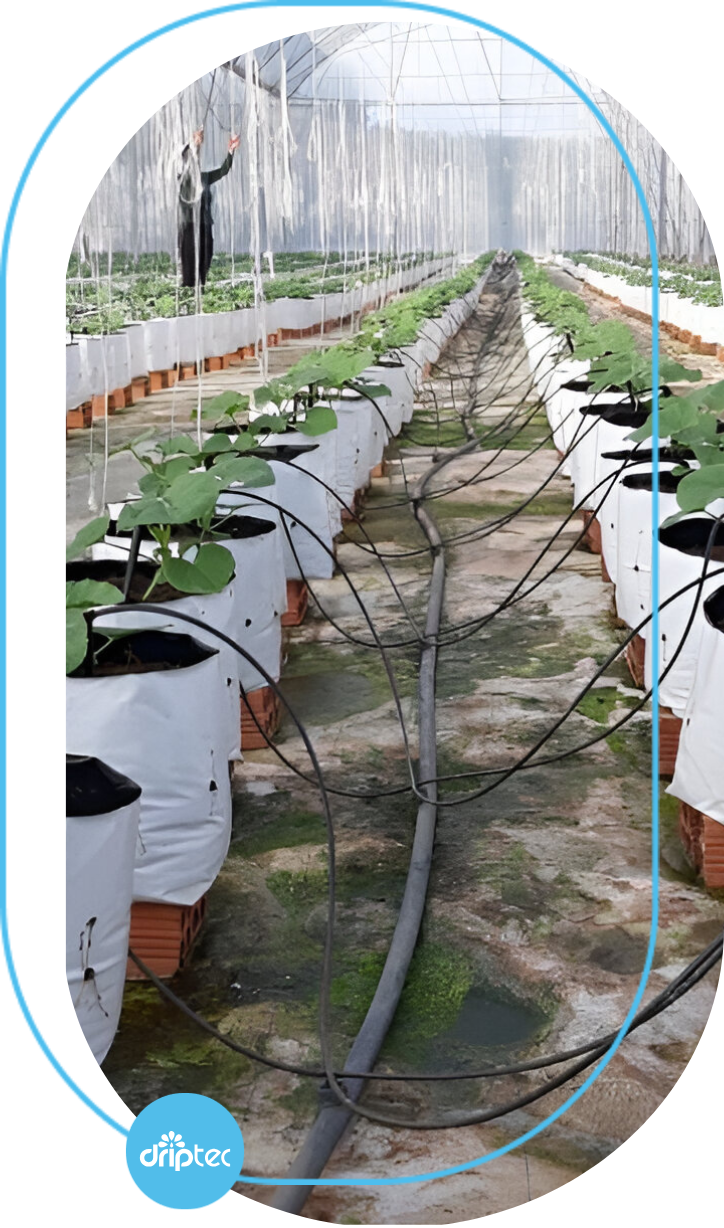

Lợi ích của tưới cây trong túi giá thể

IRRIGATION SYSTEM MODEL FOR Plants Grown in Substrate Bags

In this model, the Driptec Stream dripper kit typically includes: a pressure-compensating dripper (or an anti-leak pressure-compensating dripper), a 2-way or 4-way connector, a 3x5mm PE tube segment, and the dripper

The drip stake is directly inserted into the substrate bag. Water and nutrients are delivered directly to the plant’s root zone through the dripper.

In addition to irrigation components, several other devices play a crucial role in this system—such as the automatic fertigation unit, the irrigation control system, and solenoid valves.

Moreover, anti-leak drippers should be considered. Their principle and function: when the pump is turned off, water pressure drops. When the pressure falls below 0.3 bar, the dripper shuts off completely (preventing dripping), keeping the remaining water inside the pipe full. When the pump restarts and the pressure rises above 0.3 bar, all drippers resume operation simultaneously. This mechanism significantly improves irrigation uniformity—up to nearly 100%—which is especially important for high-frequency irrigation and fertigation applications

Giải pháp tưới dưa lưới trồng trong bịch giá thể

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR  Plants Grown in Substrate Bags

Driptec dripline global

Driptec dripline

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

  • Material: high quality of PE plastic
  • Diameter: 12mm, 16mm
  • Thickness: 0.15mm, 0.20mm, 0.30mm
  • Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
  • Emitter spacing: 15cm, 20cm, 30cm
Stream dripper

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

  • Material: high quality virgin plastic.
  • Color: Grey
  • Connection: 3 x 5mm PE pipe.
Nut chia dau nho giot Driptec

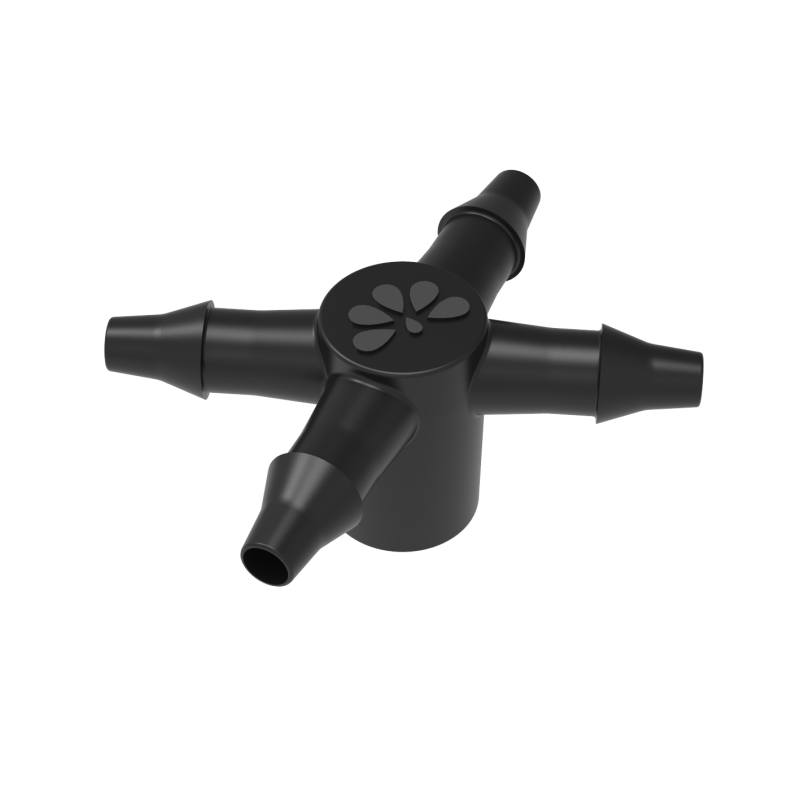

2-Way and 4-Way Connectors

Description

  • Widely used in melon irrigation and other crops grown in substrate bags

  • These connectors split the flow from a Rivulis Supertif dripper into two or four separate 3x5mm tubes, allowing each line to irrigate one individual pot

  • Manufactured by Rivulis – durable and reliable

  • Product details: Driptec branching adaptor

Dripii dripper PCND 2lph

Drippi dripper

Drippi dripper with multi function: PC (Pressure compensation) and PCND (PC none drain), high precision, durable suit for watering greenhouse crops and potted plants.

General information

  • Material: high quality of technical plastic
  • PC flow rate: 2, 4, 8, 12, 25lph
  • PC ND flow rate: 2, 4, 8lph
  • Flow rate identify by color
  • 3mm barb connection
Driptec Soft PE white

Driptec soft PE  3x5mm

Driptec soft PE made in Israel with high quality, it is specially applying in drip irrigation for greenhouse, potted plants…

General information

Size: 3*5mm
Color: black; white/black
Package: roll 500m; 0.5m – 0.6m or 1.0m cutted

BUDGET FOR AUTOMATIC Irrigating Plants in Substrate Bags

Cost is being updated.
For more details, please contact Nha Be Agri’s hotline: 19002187.
