AUTOMATIC AVOCADO

IRRIGATION SOLUTION

Watering adequately, with the right flow, frequency and supply to the right root zone of the tree helps the avocado garden to be healthy, productive and able to harvest for a long time.

Avocado is a crop that needs a lot of water. Based on many studies, in hot climates, the amount of water used by avocados is about 45 liters/day in spring, 136 to 220 liters/day in summer and 121 liters/day in autumn. Avocado trees have shallow roots, mainly distributed at a depth of 20-60 cm of soil and are not very effective in exploiting water from deeper soil layers. Therefore, rainfall and/or irrigation will keep the top 15-20 cm of soil moist.

Farmers can use sprinkler irrigation or drip irrigation around the base.

AUTOMATIC AVOCADO IRRIGATION SOLUTION

AUTOMATIC AVOCADO IRRIGATION SOLUTION

Frequency and Volume:

As mentioned above: the amount of water used for avocado is about 45 liters/day in spring, 136 to 220 liters/day in summer and 121 liters/day in autumn.

Farmers can water avocado 2-3 times a day with a total volume rate not exceeding the water needs of the tree. However, farmers should note that dividing into too many watering times can encourage the development of shallow roots, making the tree less drought-resistant, especially in places with strong winds.

On the other hand, watering too much at one time can cause root rot, causing nutrients to overflow.

Depending on each climate zone, we determine the watering cycle for avocado trees, with hot climate zones, the watering cycle repeats in the summer is about 7 days/watering.

BENEFITS OF AUTOMATIC AVOCADO IRRIGATION

  • Avocado trees have large, soft leaves that transpire a lot of water in warm weather, so they require frequent irrigation. The most critical periods are during flowering and fruit setting. In these growth stages, farmers should irrigate when rainfall is insufficient to minimize fruit drop and increase fruit size.
  • Ensures the tree is consistently watered with the right amount, keeping it healthy and vigorous
  • Conserves water by delivering precise quantities
  • Easily expandable as trees grow, by adjusting the sprinkler radius or adding more emitters
  • Supports fertigation—applying fertilizers through the irrigation system
  • Greatly reduces labor requirements
  • Uses durable components such as LDPE pipes and Rivulis sprinklers, which can last for decades
  • Avocado trees are sensitive to high iron levels (above 1 mg/L) in water, making groundwater unsuitable in many areas—an automatic irrigation system helps overcome this challenge
BENEFITS OF AUTOMATIC AVOCADO IRRIGATION

IRRIGATION SYSTEM MODEL FOR AVOCADO

BUDGET FOR AUTOMATIC CORN IRRIGATION

Avocado Irrigation Model Using Driptec micro Sprinklers. Highly effective for large-scale operations, sloped or hilly land, and areas with abundant water resources.

In this model, the system includes: a water source and pump; filters and valves; a controller and solenoid valves; main water pipelines (PVC or HDPE); lateral lines (LDPE); and the sprinkler set (sprinklers, sprinkler stands, water tubes, and fittings). All components are connected using joints and accessories…

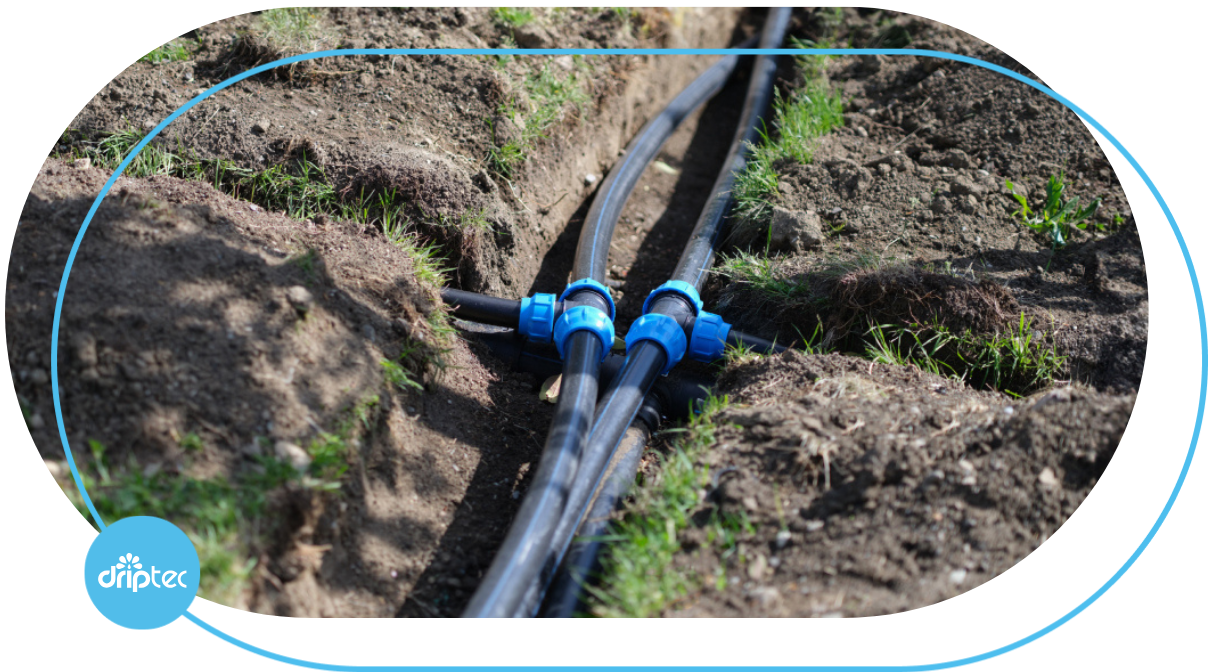

Avocado Irrigation Model Using Drip Tubing

Avocado Irrigation Model Using Drip Tubing Wrapped Around the Base. Particularly effective when combined with agricultural mulch films for weed control.

In this model, the system includes: a water source and pump; filters and valves; a controller and solenoid valves; main water pipelines (PVC or HDPE); lateral lines (LDPE); and drip emitters and/or drip tubing wrapped around the base of each tree. All components are connected using various joints and fittings.

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR AUTOMATIC AVOCADO IRRIGATION SYSTEM

Driptec dripline global

Driptec dripline

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

  • Material: high quality of PE plastic
  • Diameter: 12mm, 16mm
  • Thickness: 0.15mm, 0.20mm, 0.30mm
  • Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
  • Emitter spacing: 15cm, 20cm, 30cm
driptec-micro-sprinkler-black 01

Driptec Micro sprinkler

The Driptec Micro sprinkler is researched and produced based on the watering needs of many Vietnamese farmers who grow trees on steep hills and where water is scarce.
From this point, we also believe the product will be suitable and meet most of the fruit irrigation needs that millions of growers globally are applied.
The product is made from 100% virgin plastic combined with UV resistance, corrosion resistance, and chemical resistance.
Driptec sprinklers are especially suitable for watering under fruit trees canopy.
Some important features of the irrigation nozzle:
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
In addition, the Driptec sprinkler is modernly designed and easy to assemble. The product is sturdy and can last up to 10 years.
Que ghim nhỏ giọt Driptec Stream

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

  • Material: high quality virgin plastic.
  • Color: Grey
  • Connection: 3 x 5mm PE pipe.

BUDGET FOR AUTOMATIC AVOCADO IRRIGATION SOLUTION

COST OF INSTALLING AN IRRIGATION SYSTEM FOR 1 HECTARE OF AVOCADO

Area: 1 hectare (100m x 100m)
Tree spacing: 8m x 8m

Using Driptec DR09 sprinklers

Costs may vary if the orchard size or tree spacing changes.

The price list below is for reference only. For detailed consultation, calculations, and quotations tailored to your orchard, please contact Nhà Bè Agri Hotline at 0983 230 879.

Actual costs typically range between 18 to 22 million VND per hectare, depending on the quality of materials and sprinklers used.

STT PRODUCT NAME QUANTITY UNIT PRICE TOTAL AMOUNT
1 Driptec DR09 Sprinkler Kit 160 kit
2 LDPE Plain Pipe Dekko φ20×1.2mm 1,2800m
3 20mm LDPE Pipe Start Connector 15 units
4 LDPE pipe end lock 20mm 15 units
5 Azud Pressure Gauge 1 unit
6 3mm LDPE Pipe Punch 1 unit
7 Arka T-Type Disc Filter 60mm, 120 Mesh, 30m³/h 1 unit
8 60mm Air Release Valve 1 unit
9 DEKKO PVC Main Pipeline 60×1.9mm, PN8 200m
10 60mm DEKKO PVC Pipe Shut-off Valve 3 units
11 DEKKO PVC Pipe Adhesive 1kilo 1 kilo
12 Central Unit Installation Kit and Pipe Fittings (Elbows, Tees, etc.) 1 kit
13 3HP Water Pump (Head ~30m, Flow Rate ~30m³/h) 1 unit
14 TOTAL
15 Discount for Orders on Nha Be Agri
16 Total Installation Cost for 1 Hectare of Avocado (8m x 8m Spacing)
