AUTOMATIC BANANA

IRRIGATION SOLUTION

Dry weather can significantly affect banana yield and fruit quality. Even in areas with frequent rainfall, unpredictable weather still poses risks to banana cultivation.

Bananas require large amounts of fertilizer, especially nitrogen (N) and potassium (K). To achieve high yields, bananas also need a sufficient supply of calcium (Ca), magnesium (Mg), sulfur (S), iron (Fe), copper (Cu), zinc (Zn), boron (B), manganese (Mn), and molybdenum (Mo). A deficiency in any of these elements can negatively impact banana productivity.

In reality, the average banana yield depends on factors such as climate, variety, plant age, and management practices. However, by applying the correct automatic banana irrigation and delivering nutrients accurately through the irrigation system, yields typically reach 60–70 tons per hectare.

AUTOMATIC BANANA IRRIGATION SOLUTION

AUTOMATIC BANANA IRRIGATION SOLUTION

Banana Irrigation Solution can be implemented using either a drip irrigation system or a sprinkler system. Each method offers specific advantages, and the choice depends on the actual conditions of the plantation.

  • Drip irrigation is becoming increasingly popular due to its efficiency in saving water, fertilizer, and energy used for pumping. It also allows for fertilizer application through the irrigation system and keeps the ground dry, which is convenient for workers caring for the banana plants. Additionally, drip systems are less prone to damage from fallen leaves or human activity.
  • On the other hand, sprinkler irrigation is easier to implement when the water source is not clean, or when water is abundant. It also allows users to easily observe the system and detect issues like damaged emitters. Furthermore, sprinkler irrigation increases humidity, which helps in the decomposition of dry leaves more quickly.

BENEFITS OF AUTOMATIC BANANA IRRIGATION

  • Compared to flood irrigation, drip irrigation can help you save over 50% of water. When compared to sprinkler systems, drip irrigation still offers about 20% water savings.
  • With accurate water and fertilizer application, yields can reach up to 70 tons per hectare.
  • Drip irrigation also allows for easy implementation of a fully automated system by dividing the field into multiple small irrigation zones and integrating automatic control units.
BENEFITS OF AUTOMATIC BANANA IRRIGATION

FAQ about Banana Irrigation solution

If you are growing bananas in areas with high rainfall, a drip irrigation system allows you to supply water during dry periods. This ensures consistent growth, keeps the plants healthy, improves disease resistance, and increases yield.

More importantly, with an automatic irrigation system, you can efficiently integrate year-round fertilization and nutrient delivery. Fertilizing through the irrigation system enhances uniformity, prevents nutrient leaching, and saves both fertilizer and labor.

While average yield is affected by factors such as climate, variety, plant age, and other conditions, typical yields can reach up to 70 tons per hectare with an automatic irrigation system combined with precise fertigation.

Compared to traditional irrigation methods and manual watering, drip irrigation systems can save up to 50% of water. Compared to sprinkler irrigation systems using sprinklers, a widely used alternative in banana production, you can save about 20% of water.

Many studies show that the water use efficiency in drip irrigation systems can reach up to 95% thanks to their ability to deliver water directly to the root zone, reduce evaporation, and minimize wind drift.

Drip irrigation systems combined with solenoid valves and irrigation controllers allow you to operate the system automatically and more efficiently. You can set the irrigation schedule by time or based on moisture sensors.

Please contact Nha Be Agri for more detailed consultation on automation in irrigation management.

Many banana projects have demonstrated that drip irrigation increases both yield and quality in ways no other irrigation method can match. Additionally, drip technology significantly saves water, fertilizer, and labor. Economic analyses show that in the long run, drip irrigation is the most sustainable system for banana plantations, delivering higher economic returns than any other method.

The Azud Geniun pressure-compensated drip tubing is a great recommendation for banana irrigation needs.

In Vietnam, many banana farms also use sprinkler irrigation with water-saving nozzles. Sprinkler irrigation is especially suitable in areas where the water quality is poorer. Additionally, visual inspection of the system is easier because you can clearly see the water jets, unlike with drip irrigation systems. Another benefit of micro-sprinklers is that they accelerate the formation of leaves and organic matter on the soil surface.

A major benefit is that the drip irrigation system is fully protected from damage caused by falling leaves or vandalism. Additionally, the drip system allows growers to work in the plantation without getting wet, even when the system is running. The drip irrigation system also enables the application of pesticides and fertilizers through the system, reducing operational complexity and saving costs.

Yes! Not only can you use fertigation, but you can also fully control the amount of fertilizer applied. Through various trials and best practices worldwide, it is known that applying small doses of fertilizer continuously throughout the growth period helps maintain nutrients available near the root zone. This is more effective than applying large doses at once during the plant’s growth stage.
By irrigating and fertilizing through the irrigation system, you can ensure your bananas receive exactly what they need to achieve optimal size and quality.

IRRIGATION SYSTEM MODEL FOR BANANA

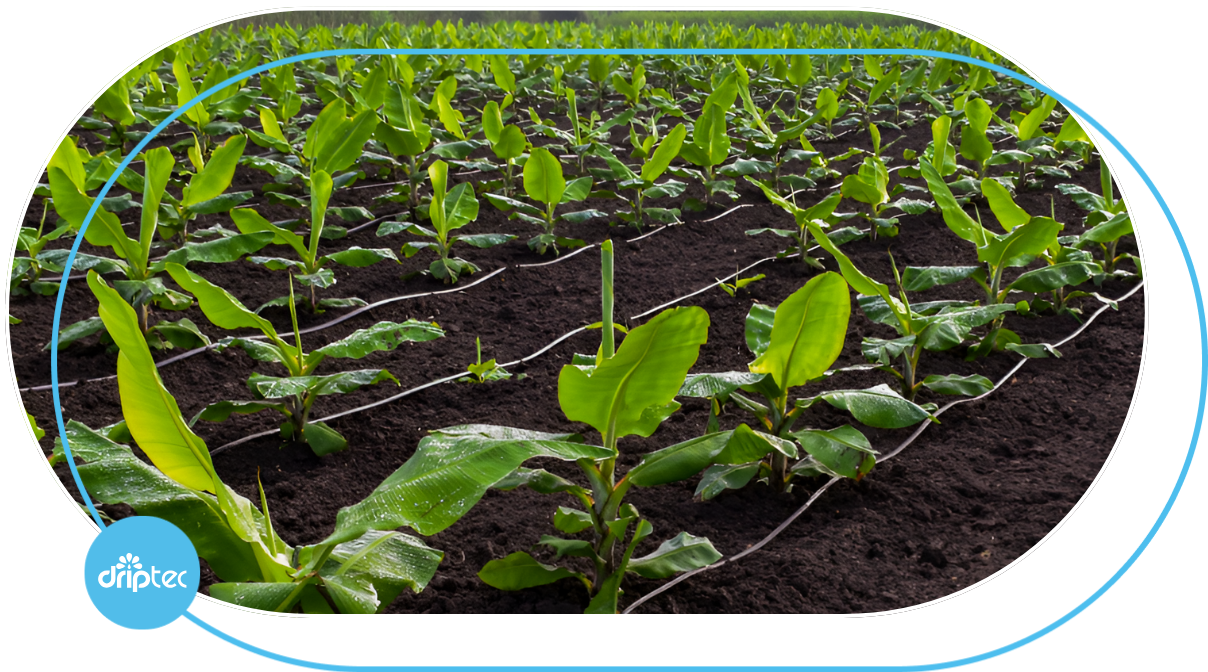

Drip Irrigation for Banana

Drip Irrigation for Banana

Drip irrigation provides banana exactly what they need while saving resources such as electricity, water, and fertilizers.
Drip irrigation is the perfect distribution system that efficiently delivers water and nutrients directly to the banana roots, helping them reach their full potential.

Automatic Drip Irrigation solution for Bananas

For each row of banana plants, two parallel drip lines are laid on both sides, with emitter spacing of about 40-50 cm and a flow rate of approximately 1.6 – 2.0 liters per hour per emitter.

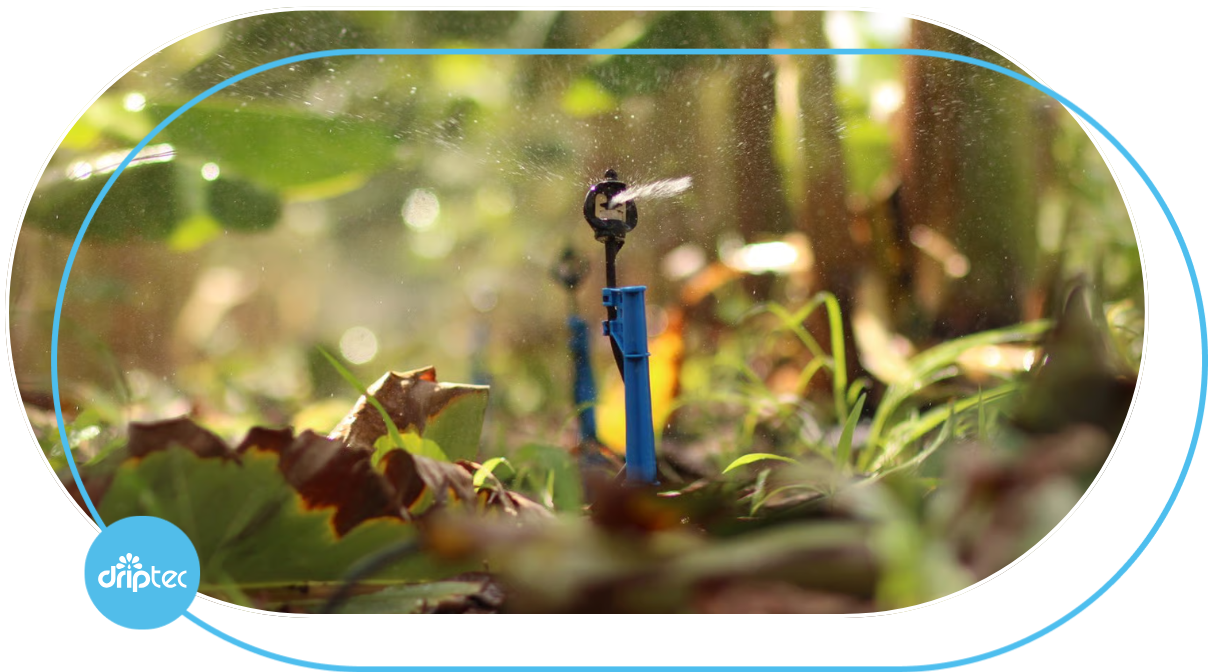

Sprinkler Irrigation for Bananas

Sprinkler Irrigation for Bananas

Low-flow sprinkler irrigation is also an excellent precision watering solution for banana plantations. Many farmers prefer sprinkler systems because they can handle lower-quality water. Additionally, visual inspection of the system is easier since you can clearly see the water jets, unlike drip irrigation systems. Another benefit of micro-sprinklers is that they accelerate leaf formation and the development of organic matter on the soil surface.

Automatic Sprinkler Irrigation Solution for Bananas

Two rows of banana plants share one LDPE pipe, on which low-flow sprinkler nozzles are installed.

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR AUTOMATIC BANANA IRRIGATION SYSTEM

Driptec dripline global

Driptec dripline for banana irrigation

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

  • Material: high quality of PE plastic
  • Diameter: 12mm, 16mm
  • Thickness: 0.15mm, 0.20mm, 0.30mm
  • Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
  • Emitter spacing: 15cm, 20cm, 30cm
driptec-micro-sprinkler-black 02

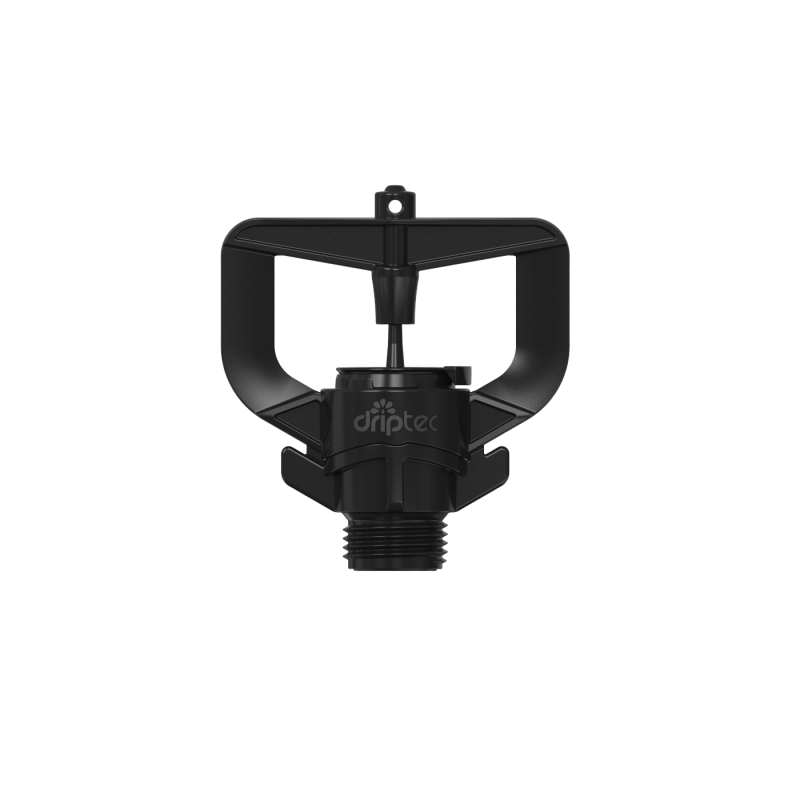

Driptec Micro sprinkler DR09

The Driptec Micro sprinkler DR09 is researched and produced based on the watering needs of many Vietnamese farmers who grow trees on steep hills and where water is scarce.
From this point, we also believe the product will be suitable and meet most of the fruit irrigation needs that millions of growers globally are applied.
The product is made from 100% virgin plastic combined with UV resistance, corrosion resistance, and chemical resistance.
Driptec sprinklers are especially suitable for watering under fruit trees canopy.
Some important features of the irrigation nozzle:
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
In addition, the Driptec sprinkler is modernly designed and easy to assemble. The product is sturdy and can last up to 10 years.
Driptec mini sprinkler DR07 6mm connector

Driptec Mini sprinkler DR07

Driptec Mini sprinkler DR07 is designed as a multi-purpose sprinkler that can apply to many vegetable crops and fruit trees with options with or without pressure compensation function, 5/8″ thread connection or 1/4″ bard connector.
We also add one more option for more convenience choice is the valve for each sprinkler.
This product is a good choice for irrigation purposes for medium-life plants, for example fruit trees, citrus trees, vegetables, flowers.
The product is compact, minimalist in design, focusing on high performance: radius and uniformity.
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
Dripii dripper PCND 2lph

Dripii dripper

Dripii dripper with multi function: PC (Pressure compensation) and PCND (PC none drain), high precision, durable suit for watering greenhouse crops and potted plants.

General information

  • Material: high quality of technical plastic
  • PC flow rate: 2, 4, 8, 12, 25lph
  • PC ND flow rate: 2, 4, 8lph
  • Flow rate identify by color
  • 3mm barb connection
Stream dripper

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

  • Material: high quality virgin plastic.
  • Color: Grey
  • Connection: 3 x 5mm PE pipe.
Nut chia dau nho giot Driptec

2-Way and 4-Way Connectors

Description

  • Widely used in melon irrigation and other crops grown in substrate bags

  • These connectors split the flow from a Rivulis Supertif dripper into two or four separate 3x5mm tubes, allowing each line to irrigate one individual pot

  • Manufactured by Rivulis – durable and reliable

  • Product details: Driptec branching adaptor

Driptec Soft PE white

Driptec soft PE  3x5mm

Driptec soft PE made in Israel with high quality, it is specially applying in drip irrigation for greenhouse, potted plants…

General information

Size: 3*5mm
Color: black; white/black
Package: roll 500m; 0.5m – 0.6m or 1.0m cutted

Drip tube png

Drip tube

Drip tube made by 100% high quality Virgin plastic to ensure it durable, stable and easy to install on any terrains and crops.

General information

  • Normal size: 16mm, 20mm, 25mm, 32mm with thickness 1.0mm, 1.2mm, and 1.5mm
  • Made by 100% high quality virgin PE plastic
  • Easy to insert dripper and/or fitting.
Driptec pcv layflat hose png

Driptec PVC layflat hose

Driptec PVC layflat hose are specialized for agricultural irrigation, ensuring durability, strength, high pressure resistance, and flexibility.

General information

  • Normal size: 2.0″, 2.5″, 3.0″
  • Color: blue (working pressure 4.0bar); black (working pressure 6.0bar); red (working pressure 8.0-10.0bar)
  • Package: roll 50m; roll 100m
Driptec PE layflat hose png

Driptec PE Layflat hoses

Driptec PE Layflat hoses are specialized for agricultural irrigation, ensuring durability, strength, high pressure resistance, and flexibility.

General information

  • Normal size: 2.0″, 2.5″, 3.0″
  • Color: black (working pressure 1-2bar); white (working pressure 2.5bar)
  • Package: roll 100m

BUDGET FOR AUTOMATIC BANANA IRRIGATION SOLUTION

COST ESTIMATE FOR INSTALLING AN AUTOMATIC BANANA IRRIGATION SYSTEM

Area: 1 hectare (100m x 100m)

Ridge width: 0.7m

Distance between the centers of two ridges: 1.4m

The price list below is for reference only. For detailed consultation, calculation, and a specific quotation for your farm, please contact Nha Be Agri Hotline at 0983230879.

Detailed cost calculation for investing in a 1-hectare automatic banana irrigation system (currently being updated).
