AUTOMATIC GREENHOUSE IRRIGATION SOLUTION

AUTOMATIC GREENHOUSE

IRRIGATION SOLUTION

Greenhouse and net house irrigation solution have certain characteristics, such as plants often being grown in grow bags, coco coir bags, or hydroponically instead of in soil beds. In greenhouses, crops do not receive natural rainfall, and irrigation depends entirely on artificial systems. Temperatures inside greenhouses are often higher than outdoor conditions. Most greenhouse and net house irrigation systems serve multiple functions: watering, fertilizing and supplying nutrients, cooling and humidifying to create a favorable environment for plant growth.

Therefore, automatic irrigation systems in greenhouses and net houses play a particularly important role. Common greenhouse and net house irrigation systems usually include: drip irrigation using stakes, misting systems for cooling, and drip irrigation using drip lines.

AUTOMATIC GREENHOUSE IRRIGATION SOLUTION

As previously shared, below is a more detailed overview from Nha Be Agri regarding the most common solutions applied in automatic irrigation for greenhouses and net houses.

Drip irrigation for plants grown in grow bags (substrate bags): For crops grown in grow bags, the substrate (e.g. coco coir) primarily serves as a medium for the roots to anchor. The substrate essentially contains no nutrients. Plant roots receive water and nutrients entirely through the automatic irrigation system. Drip stakes are typically used by inserting them directly into the grow bags, allowing water and nutrients to spread throughout the entire volume of the bag.
Misting for cooling, humidifying, and providing water to plants: Mist nozzles can be hung from the greenhouse/net house roof or mounted on irrigation poles. For the purpose of cooling and humidifying, ultra-fine mist nozzles are hung overhead; for the purpose of humidifying and watering crops, mist nozzles with larger droplet sizes are used.
Drip irrigation using drip lines for crops grown in soil beds: In practice, certain crops are often grown directly in the ground—such as chrysanthemums, lilies, and some vegetables and fruits like melons, tomatoes, and bell peppers. In this case, drip lines are typically applied. The irrigation system delivers water and nutrients directly to the plant roots.

BENEFITS OF AUTOMATIC GREENHOUSE IRRIGATION SOLUTION

Yields can double compared to traditional cultivation methods.
Precise control of irrigation volume allows calculation of optimal water levels.
Especially water-efficient, making it suitable for areas with limited water resources.
Easy to install, operate, and maintain.
Applicable to all field sizes and terrains.
Fertilizers can be applied through the irrigation system, reducing fertilizer usage by up to 50% compared to traditional methods.
Significantly reduces labor needed for irrigation and weeding.
Saves on pumping costs.
Farmers’ income from watermelon cultivation can increase significantly.

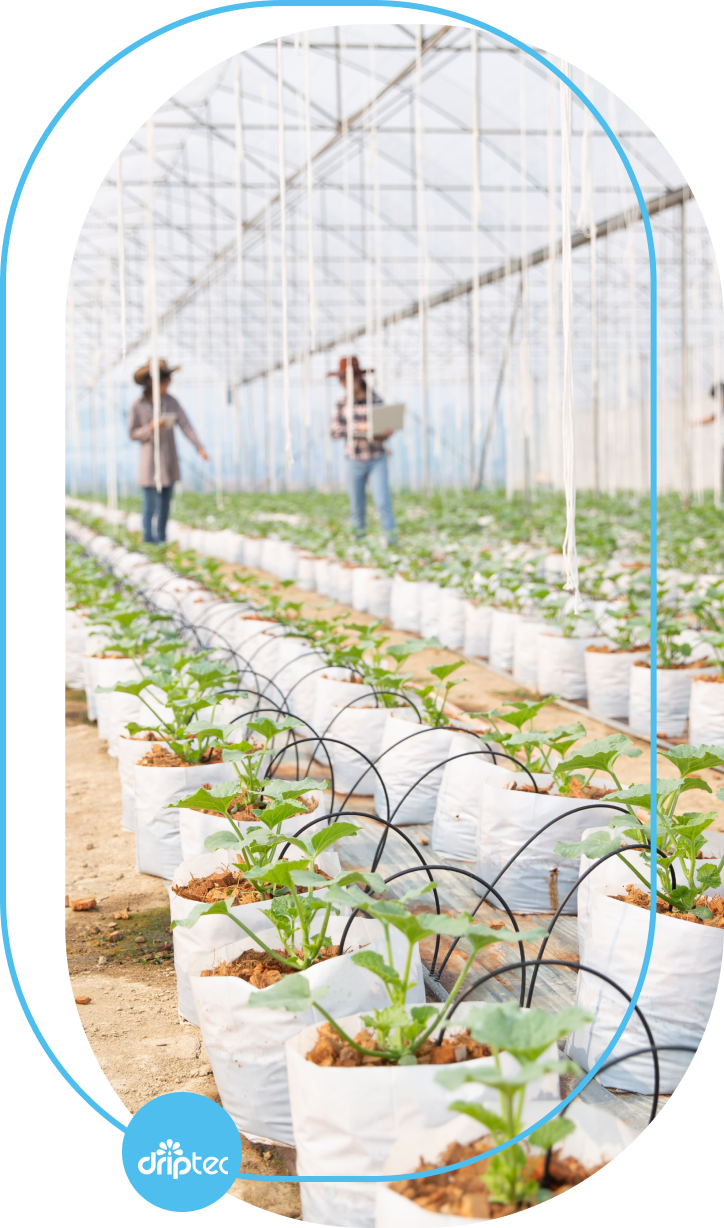

GIẢI PHÁP TƯỚI NHÀ KÍNH, TƯỚI NHÀ MÀNG TỰ ĐỘNG

IRRIGATION SYSTEM MODEL FOR GREENHOUSE IRRIGATION

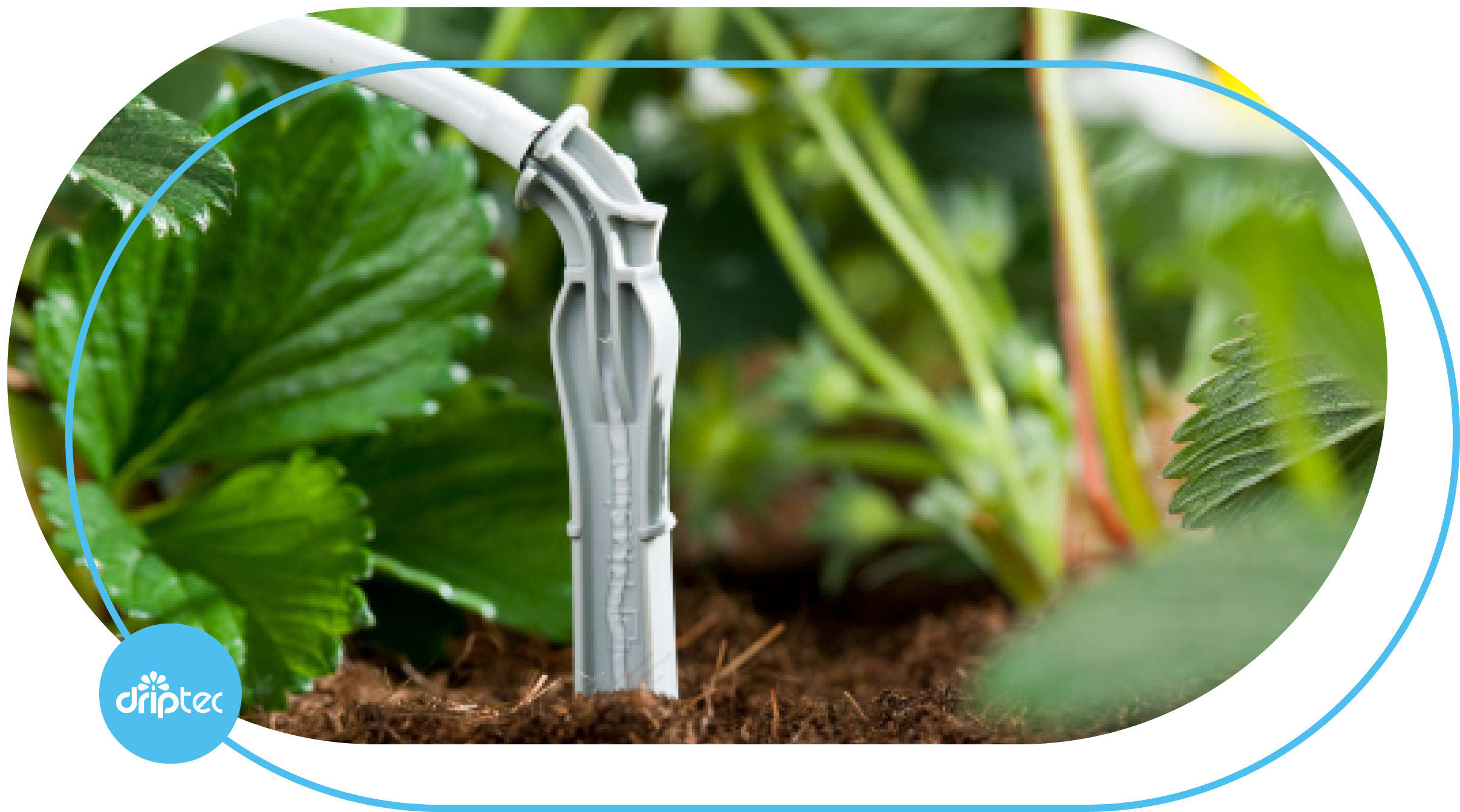

Giải pháp tưới nhà kính, tưới nhà màng sử dụng que ghim

Drip Irrigation Solution for Greenhouses

Many types of crops grown in greenhouses and net houses are cultivated in grow bags. The most suitable irrigation solution for this cultivation method is the use of drip stakes. Each grow bag will be irrigated using one drip stake.

The system will include a water source; filtration unit; automatic fertigation system; automatic controller, solenoid valves, main and sub-main water pipelines (laid along the rows of grow bags); and a drip stake kit (including a dripper, 2-way or 4-way splitter, a piece of 3x5mm soft PE tubing, and a drip stake).

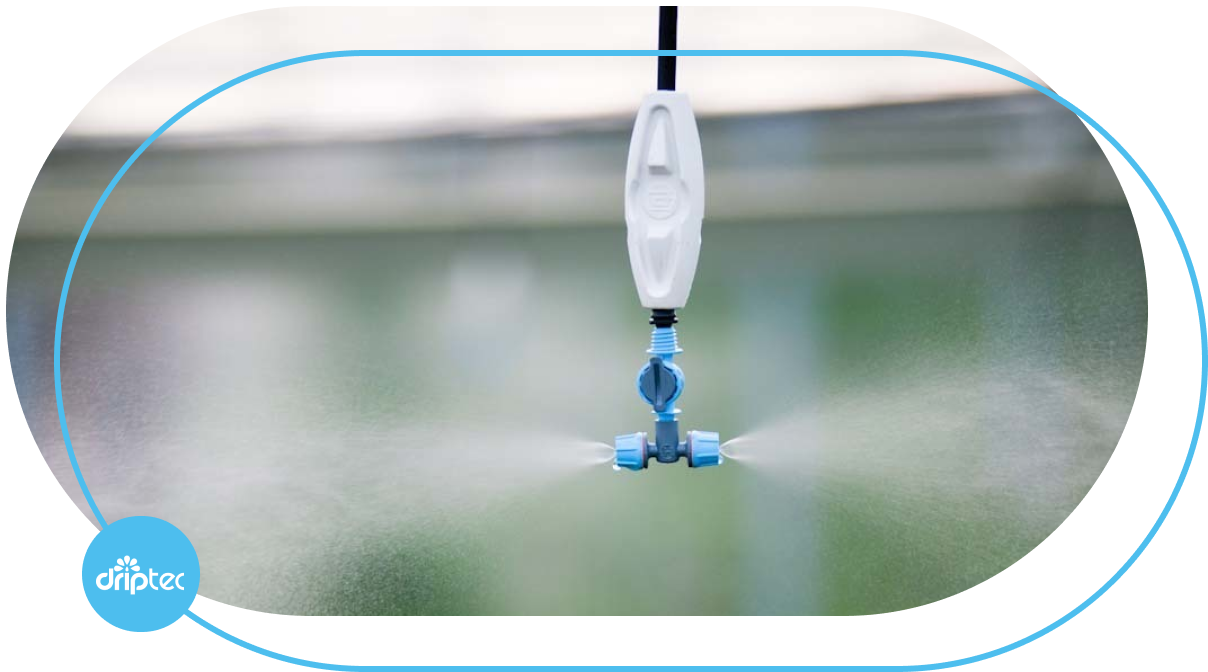

Giải pháp tưới phun sương làm mát cho nhà màng, nhà kính

Misting Irrigation Solution for Cooling Greenhouses

Due to the greenhouse effect (even though modern greenhouse film technologies have significantly reduced heat absorption), the temperature inside greenhouses is often quite high, requiring growers to install misting systems for cooling and humidity control.

This system can serve one or both of the following purposes: cooling through misting, and maintaining humidity while providing water for the crops. For cooling only, fine mist nozzles should be used; for combined cooling and irrigation, misting nozzles with larger droplet sizes can be applied.

Drip Irrigation Solution for Bed-Grown Crops

Some common crops typically grown directly on soil beds inside greenhouses include melons, tomatoes, bell peppers, lilies, chrysanthemums, etc. For this cultivation method, the drip irrigation system with drip lines running along the crop rows is commonly applied. To optimize investment costs, a double-row planting method (two crop rows sharing one drip line) is recommended.

This model is simpler compared to the drip irrigation system for melons grown in grow bags. The irrigation system includes a water source, filters, an automatic fertigation unit, an automatic controller, solenoid valves, main and sub water pipelines, and drip lines.

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR AUTOMATIC GREENHOUSE IRRIGATION SYSTEM

Driptec dripline

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

Material: high quality of PE plastic
Diameter: 12mm, 16mm
Thickness: 0.15mm, 0.20mm, 0.30mm
Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
Emitter spacing: 15cm, 20cm, 30cm

Driptec Micro sprinkler

The Driptec Micro sprinkler is researched and produced based on the watering needs of many Vietnamese farmers who grow trees on steep hills and where water is scarce.

From this point, we also believe the product will be suitable and meet most of the fruit irrigation needs that millions of growers globally are applied.

The product is made from 100% virgin plastic combined with UV resistance, corrosion resistance, and chemical resistance.

Driptec sprinklers are especially suitable for watering under fruit trees canopy.

Some important features of the irrigation nozzle:

Compensate Pressure (PC) feature
Anti-insect intrusion feature
Irrigation radius adjustment feature

In addition, the Driptec sprinkler is modernly designed and easy to assemble. The product is sturdy and can last up to 10 years.

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

Material: high quality virgin plastic.
Color: Grey
Connection: 3 x 5mm PE pipe.

2-Way and 4-Way Connectors

Description

Widely used in melon irrigation and other crops grown in substrate bags
These connectors split the flow from a Rivulis Supertif dripper into two or four separate 3x5mm tubes, allowing each line to irrigate one individual pot
Manufactured by Rivulis – durable and reliable
Product details: Driptec branching adaptor

Driptec Mini sprinkler DR07

Driptec Mini sprinkler DR07 is designed as a multi-purpose sprinkler that can apply to many vegetable crops and fruit trees with options with or without pressure compensation function, 5/8″ thread connection or 1/4″ bard connector.

We also add one more option for more convenience choice is the valve for each sprinkler.

This product is a good choice for irrigation purposes for medium-life plants, for example fruit trees, citrus trees, vegetables, flowers.
The product is compact, minimalist in design, focusing on high performance: radius and uniformity.

Compensate Pressure (PC) feature
Anti-insect intrusion feature
Irrigation radius adjustment feature

Drippi dripper

Drippi dripper with multi function: PC (Pressure compensation) and PCND (PC none drain), high precision, durable suit for watering greenhouse crops and potted plants.

General information

Material: high quality of technical plastic
PC flow rate: 2, 4, 8, 12, 25lph
PC ND flow rate: 2, 4, 8lph
Flow rate identify by color
3mm barb connection

Driptec soft PE 3x5mm

Driptec soft PE made in Israel with high quality, it is specially applying in drip irrigation for greenhouse, potted plants…

General information

Size: 3*5mm
Color: black; white/black
Package: roll 500m; 0.5m – 0.6m or 1.0m cutted

Drip tube

Drip tube made by 100% high quality Virgin plastic to ensure it durable, stable and easy to install on any terrains and crops.

General information

Normal size: 16mm, 20mm, 25mm, 32mm with thickness 1.0mm, 1.2mm, and 1.5mm
Made by 100% high quality virgin PE plastic
Easy to insert dripper and/or fitting.

Driptec Micro sprinkler

Like other products, Driptec Micro sprinkler connector are also made from 100% virgin technical plastic with anti-UV additives.
The connectors are designed to be compact and eye-catching. Can be used with Driptec sprinklers as well as most 5/8″ threaded nozzles.

Specifications:

Multi Input: LDPE, Soft PVC, Soft PE pipe 4*6mm, 5*7mm, 6*8mm
Output: Female thread 5/8mm; 8mm stake

BUDGET FOR AUTOMATIC GREENHOUSE IRRIGATION SOLUTION

Crops, Planting Density, and Cultivation Methods in Greenhouses and Net Houses Vary Widely
Each crop has its own specific irrigation requirements. Therefore, calculating the cost for each irrigation project is essential to ensure high accuracy.

Nha Be Agri, with a team of highly experienced technicians, offers a wide range of services including irrigation system consulting, design, equipment quotation, and system installation.
For equipment selection and pricing inquiries, please contact Nha Be Agri Hotline: 19002187.
