AUTOMATIC MELON

IRRIGATION SOLUTION

The two most important factors for the growth, yield, and quality of melon are: Nutrition and Irrigation.

Melons mainly rely on passive nutrition, with most nutrients supplied through irrigation water. These two factors become even more critical when cantaloupes are grown in substrate bags.

Automatic Melon irrigation Solution  determine both the ability to provide moisture and the capacity to supply nutrients to the melon.

AUTOMATIC MELON IRRIGATION SOLUTION

AUTOMATIC MELON IRRIGATION SOLUTION

For melon, there is only one suitable irrigation method that brings high economic efficiency: Drip irrigation. However, since melons are commonly grown in two forms: melons grown in substrate bags and melons grown in soil beds, two corresponding automatic irrigation methods are applied. These are drip irrigation using drip stakes combined with anti-leak pressure-compensating drip emitters, and drip irrigation using drip lines laid along the beds.

Important note: Apply anti-leak pressure-compensating drip emitters! Use high-frequency, intermittent irrigation techniques.

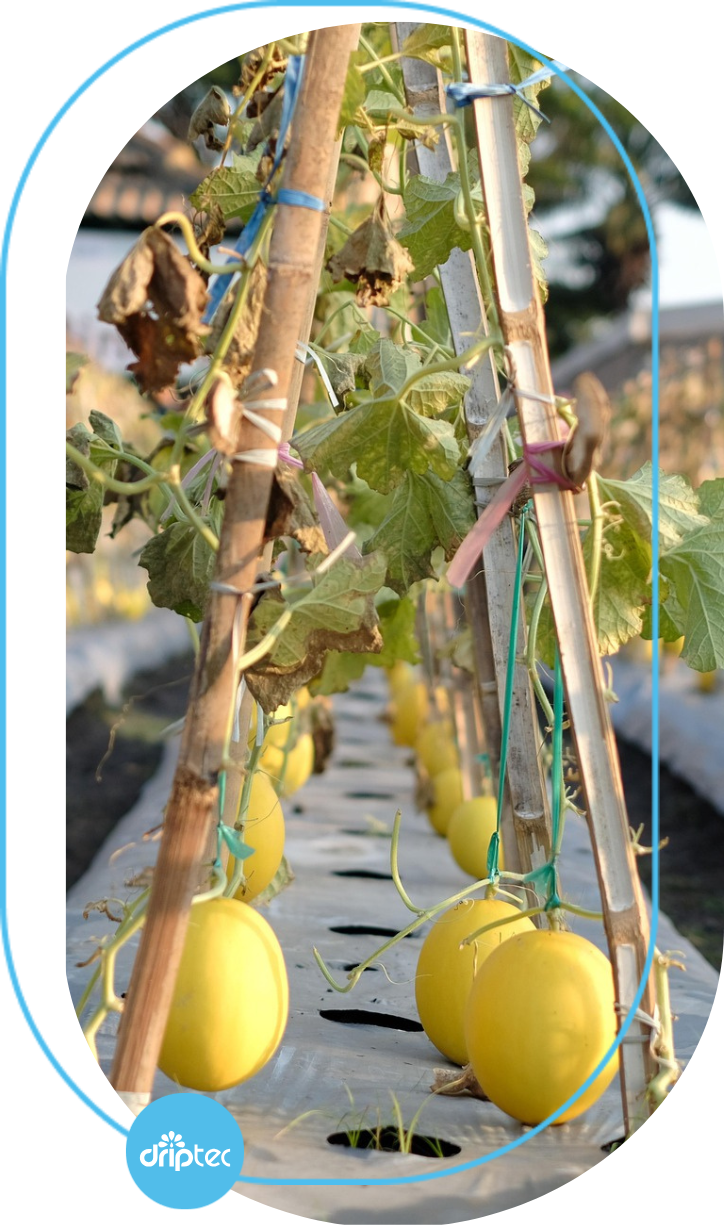

BENEFITS OF AUTOMATIC MELON IRRIGATION

  • Melons require high nutrient levels: Fertigation through the irrigation system is the most effective way to provide nutrients to melons.
  • Melons are commonly grown on coconut coir substrates and/or sandy soil: they need to be irrigated multiple times a day with low water flow rates. Only drip irrigation can meet this requirement.
  • Melons need uniform harvesting, with care regimes, irrigation flow rates, and nutrient supply being 100% consistent for each plant.
BENEFITS OF AUTOMATIC MELON IRRIGATION

IRRIGATION SYSTEM MODEL FOR MELON

Giải pháp tưới dưa lưới trồng trong bịch giá thể

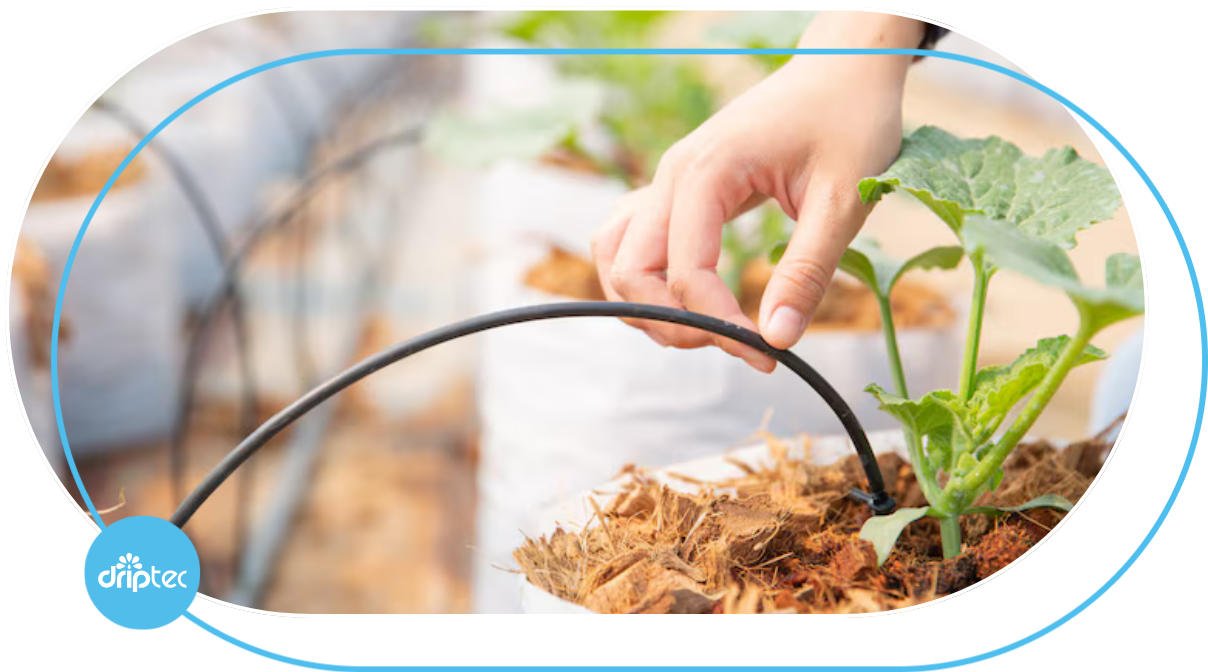

Irrigation solution for melons grown in substrate bags
When melons are grown in substrate bags, the most suitable solution is to use drip stakes. Accordingly, each substrate bag growing a melon plant will be irrigated by one drip stake.

The system model will include: water supply source; filter; automatic fertigation system; automatic controller, solenoid valve; main and branch water piping system along with lateral tubing (laid along the rows of melon pots); and a set of drip stakes (consisting of pressure-compensated drippers, 2-way or 4-way connectors, 3mm tubing segments, and the drip stakes themselves).

Giải pháp tưới nhỏ giọt dưa lưới trồng trên luống

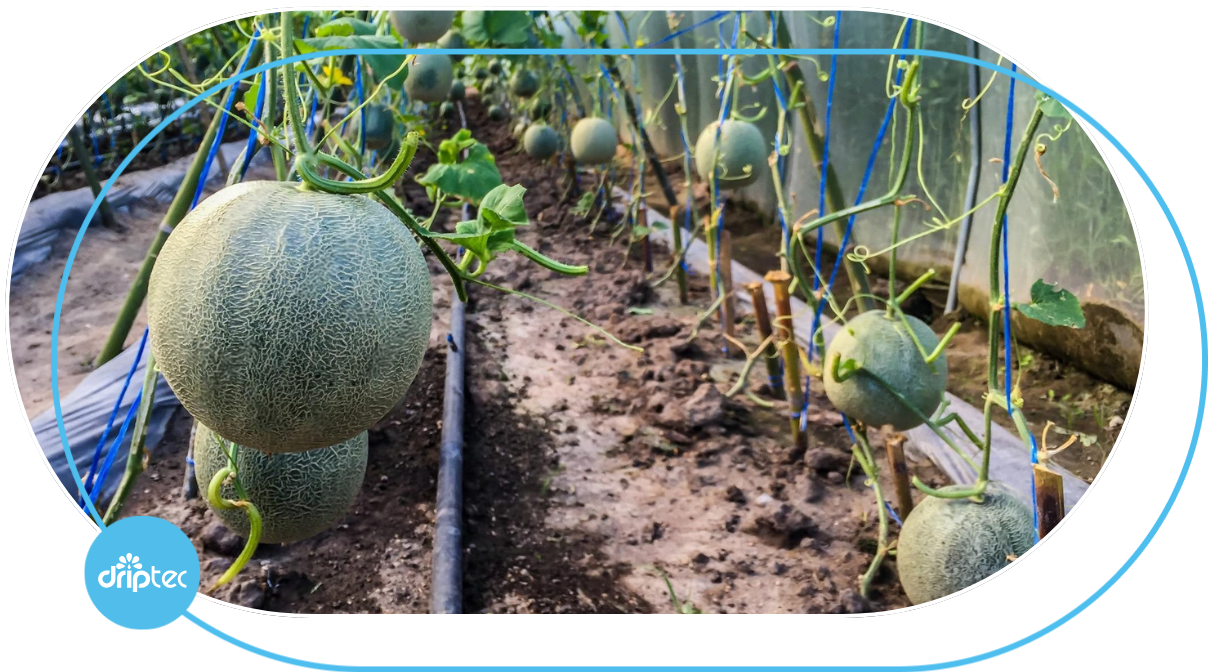

Drip irrigation solution for melons grown on soil beds
For melons grown on soil beds, the commonly applied solution is drip irrigation with drip lines laid along the beds. In this method, drip tubing with emitter spacing of about 20 cm is laid along each row of melons. Typically, one drip line runs along one row of melons, or one drip line serves two rows.

This model is simpler compared to the drip irrigation system for melon grown in substrate bags. The irrigation system includes a water supply source; filter; automatic fertigation system; automatic controller, solenoid valve; main and branch water piping; and drip tubing.

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR AUTOMATIC MELON IRRIGATION SYSTEM

Driptec dripline global

Driptec dripline

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

  • Material: high quality of PE plastic
  • Diameter: 12mm, 16mm
  • Thickness: 0.15mm, 0.20mm, 0.30mm
  • Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
  • Emitter spacing: 15cm, 20cm, 30cm
driptec-micro-sprinkler-black 01

Driptec Micro sprinkler

The Driptec Micro sprinkler is researched and produced based on the watering needs of many Vietnamese farmers who grow trees on steep hills and where water is scarce.
From this point, we also believe the product will be suitable and meet most of the fruit irrigation needs that millions of growers globally are applied.
The product is made from 100% virgin plastic combined with UV resistance, corrosion resistance, and chemical resistance.
Driptec sprinklers are especially suitable for watering under fruit trees canopy.
Some important features of the irrigation nozzle:
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
In addition, the Driptec sprinkler is modernly designed and easy to assemble. The product is sturdy and can last up to 10 years.
Que ghim nhỏ giọt Driptec Stream

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

  • Material: high quality virgin plastic.
  • Color: Grey
  • Connection: 3 x 5mm PE pipe.

BUDGET FOR AUTOMATIC MELON IRRIGATION SOLUTION

Cost is being updated.
For more details, please contact Nha Be Agri’s hotline: 19002187.
