AUTOMATIC STRAWBERRY

IRRIGATION SOLUTION

The two most important factors for the growth, yield, and quality of strawberries are nutrients and irrigation.

Strawberries grown in greenhouses rely primarily on passive nutrition, with most of their nutrients supplied through irrigation. These two factors become even more critical when strawberries are grown in substrate grow bags.

Automatic irrigation solution for strawberries determine both the ability to maintain adequate moisture levels and to efficiently deliver nutrients to the plants.

AUTOMATIC STRAWBERRY IRRIGATION TECHNIQUE - GIẢI PHÁP TƯỚI DÂU TÂY TỰ ĐỘNG

AUTOMATIC STRAWBERRY IRRIGATION SOLUTION

For strawberries, the only suitable irrigation method that delivers high economic efficiency is drip irrigation. However, since strawberries are commonly cultivated in two ways—in substrate grow bags and in soil beds—there are two corresponding automatic irrigation methods: using drip stakes combined with pressure-compensating anti-drain drippers, and using drip lines laid along the planting beds.

Important note: Use pressure-compensating, anti-drain drippers and apply high-frequency pulsed irrigation solution.

BENEFITS OF AUTOMATIC STRAWBERRY IRRIGATION

  • Strawberries have high nutrient demands: Fertigation—applying fertilizers and nutrients through the irrigation system—is the most effective way to deliver nutrients to the plants.
  • Strawberries are commonly grown in coconut coir substrate and/or soil beds: They require frequent irrigation throughout the day with low water volumes. Only drip irrigation can meet this requirement.
  • Uniform harvesting is essential: Each plant must receive the same level of care, irrigation volume, and nutrient dosage—achieving up to ~100% uniformity.
BENEFITS OF AUTOMATIC STRAWBERRY IRRIGATION

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR AUTOMATIC STRAWBERRY IRRIGATION SYSTEM

Driptec dripline global

Driptec dripline

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

  • Material: high quality of PE plastic
  • Diameter: 12mm, 16mm
  • Thickness: 0.15mm, 0.20mm, 0.30mm
  • Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
  • Emitter spacing: 15cm, 20cm, 30cm
driptec-micro-sprinkler-black 02

Driptec Micro sprinkler

The Driptec Micro sprinkler is researched and produced based on the watering needs of many Vietnamese farmers who grow trees on steep hills and where water is scarce.
From this point, we also believe the product will be suitable and meet most of the fruit irrigation needs that millions of growers globally are applied.
The product is made from 100% virgin plastic combined with UV resistance, corrosion resistance, and chemical resistance.
Driptec sprinklers are especially suitable for watering under fruit trees canopy.
Some important features of the irrigation nozzle:
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
In addition, the Driptec sprinkler is modernly designed and easy to assemble. The product is sturdy and can last up to 10 years.
Stream dripper

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

  • Material: high quality virgin plastic.
  • Color: Grey
  • Connection: 3 x 5mm PE pipe.
Nut chia dau nho giot Driptec

2-Way and 4-Way Connectors

Description

  • Widely used in melon irrigation and other crops grown in substrate bags

  • These connectors split the flow from a Rivulis Supertif dripper into two or four separate 3x5mm tubes, allowing each line to irrigate one individual pot

  • Manufactured by Rivulis – durable and reliable

  • Product details: Driptec branching adaptor

Driptec mini sprinkler DR07 6mm connector

Driptec Mini sprinkler DR07

Driptec Mini sprinkler DR07 is designed as a multi-purpose sprinkler that can apply to many vegetable crops and fruit trees with options with or without pressure compensation function, 5/8″ thread connection or 1/4″ bard connector.
We also add one more option for more convenience choice is the valve for each sprinkler.
This product is a good choice for irrigation purposes for medium-life plants, for example fruit trees, citrus trees, vegetables, flowers.
The product is compact, minimalist in design, focusing on high performance: radius and uniformity.
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
Dripii dripper PCND 2lph

Drippi dripper

Drippi dripper with multi function: PC (Pressure compensation) and PCND (PC none drain), high precision, durable suit for watering greenhouse crops and potted plants.

General information

  • Material: high quality of technical plastic
  • PC flow rate: 2, 4, 8, 12, 25lph
  • PC ND flow rate: 2, 4, 8lph
  • Flow rate identify by color
  • 3mm barb connection
Driptec Soft PE white

Driptec soft PE  3x5mm

Driptec soft PE made in Israel with high quality, it is specially applying in drip irrigation for greenhouse, potted plants…

General information

Size: 3*5mm
Color: black; white/black
Package: roll 500m; 0.5m – 0.6m or 1.0m cutted

Drip tube png

Drip tube

Drip tube made by 100% high quality Virgin plastic to ensure it durable, stable and easy to install on any terrains and crops.

General information

  • Normal size: 16mm, 20mm, 25mm, 32mm with thickness 1.0mm, 1.2mm, and 1.5mm
  • Made by 100% high quality virgin PE plastic
  • Easy to insert dripper and/or fitting.
Driptec Micro Sprinkler connector png

Driptec Micro sprinkler

Like other products, Driptec Micro sprinkler connector are also made from 100% virgin technical plastic with anti-UV additives.
The connectors are designed to be compact and eye-catching. Can be used with Driptec sprinklers as well as most 5/8″ threaded nozzles.
Specifications:
  • Multi Input: LDPE, Soft PVC, Soft PE pipe 4*6mm, 5*7mm, 6*8mm
  • Output: Female thread 5/8mm; 8mm stake

IRRIGATION SYSTEM MODEL FOR STRAWBERRY

Giải pháp tưới dâu tây trong bịch giá thể dùng que ghim nhỏ giọt

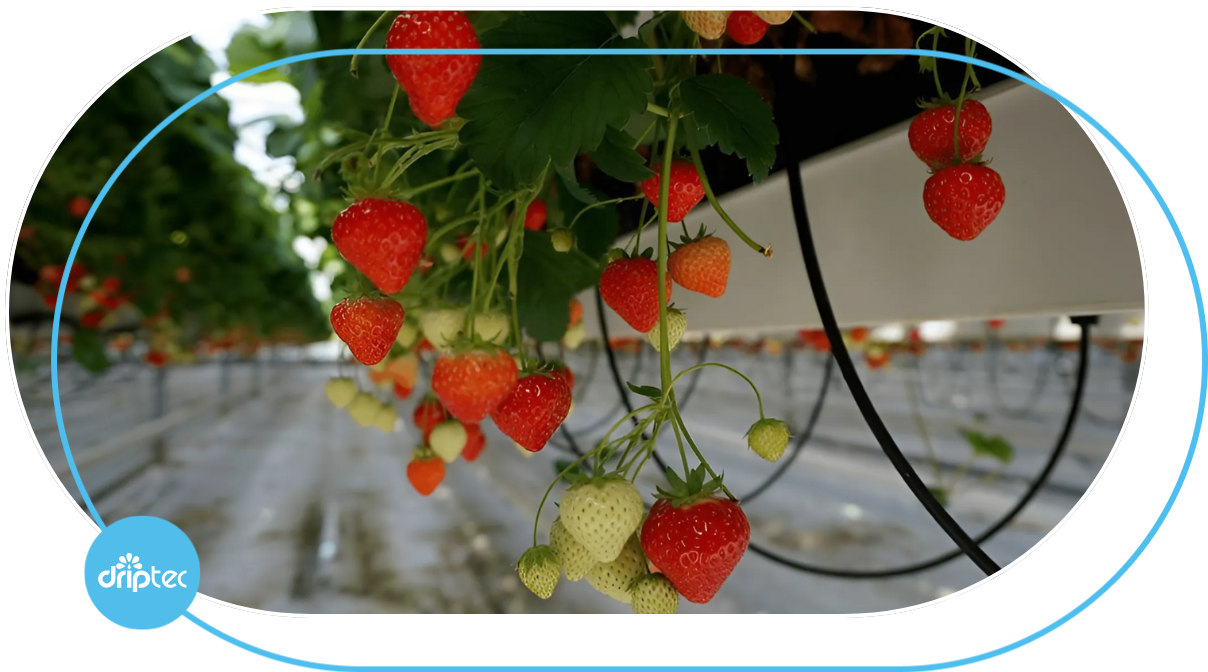

Drip Irrigation Solution for Strawberries Grown in Substrate Bags
When strawberries are grown in substrate bags, the most suitable solution is using drip stakes. Each substrate bag will be irrigated by one drip stake.

The system includes a water supply source; filtration; automatic fertigation unit; automatic controller, solenoid valves, main and subline water distribution pipes (including lateral “spaghetti” tubing along strawberry rows); and drip stake sets consisting of: pressure-compensating drippers, 2-way or 4-way split connectors, 3mm tubing, and drip stakes.

Dâu tây trên luống dùng hệ thống tưới nhỏ giọt

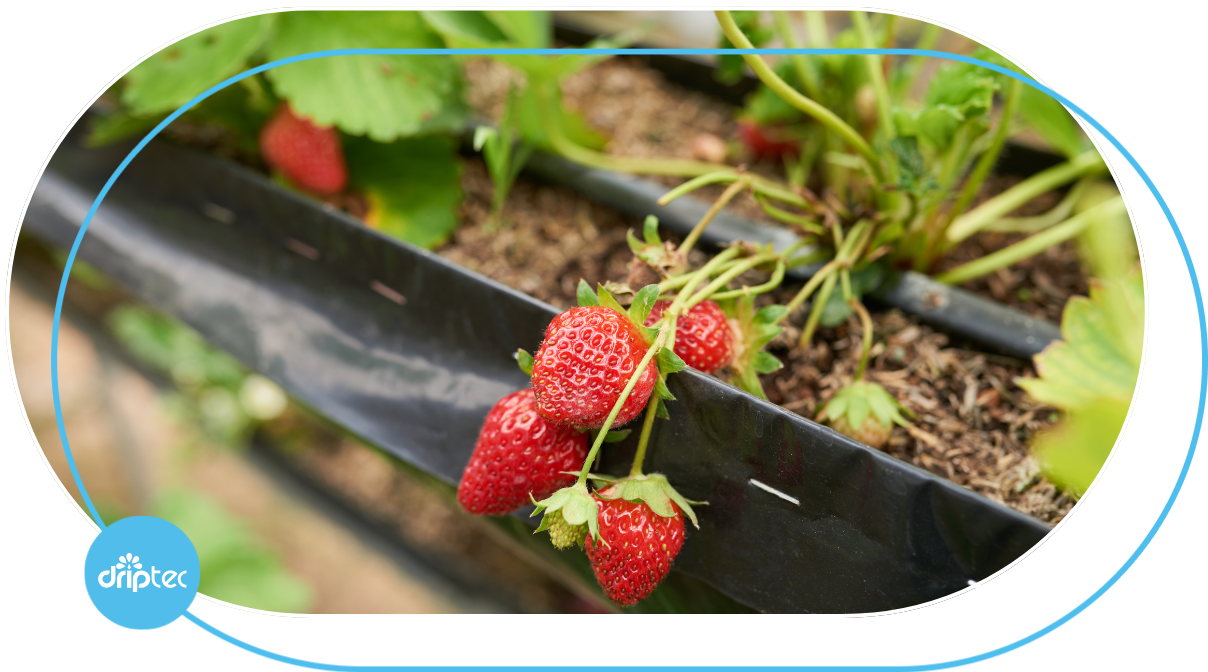

Drip Irrigation Solution for Strawberries Grown on Soil Beds
For strawberries grown on soil beds, inline drip irrigation is typically applied. In this method, drip lines with 20 cm emitter spacing are laid along the planting rows. Each strawberry row has one drip line, or one drip line is placed between every two rows.

This setup is simpler than the drip system used for strawberries grown in substrate bags. The irrigation system includes a water supply source; filtration unit; automatic fertigation system; automatic controller, solenoid valves, main and sub-main pipelines, and drip lines.

BUDGET FOR AUTOMATIC strawberry IRRIGATION SOLUTION

Cost is being updated.

For more details, please contact the Nha Be Agri hotline: 19002187.
