AUTOMATIC SUGARCANE

IRRIGATION SOLUTION

Automatic Irrigation for Sugarcane. About 5–6 years ago, in the sugarcane heartland of Son Nguyen Commune, Son Hoa District – Phu Yen, farmers could hardly believe that in one of the hottest and driest areas of the South Central region—with arid land and water scarcity—there could be fields yielding up to 120 tons/ha, and even some areas reaching 150 tons/ha.

Over a year before that, I, along with an Australian expert (Mr. Michael Laughlin), met and persuaded a farmer to try a drip irrigation system on about 0.5 hectares right in his own garden. He agreed, and just a year later, his family’s automated irrigation area expanded to over 20 hectares. That is the story of a skilled farmer, Mr. Doan Dac Mien.

On this occasion, Nhà Bè Agri would like to invite everyone to explore more information related to automatic irrigation solution for sugarcane.

AUTOMATIC SUGARCANE IRRIGATION SOLUTION - GIẢI PHÁP TƯỚI MÍA TỰ ĐỘNG

AUTOMATIC SUGARCANE IRRIGATION SOLUTION

  • When applying automatic irrigation for sugarcane, keep in mind the following: It is recommended to plant sugarcane in double rows, with the bed width about 70–90 cm. The distance between the centers of two beds should be 1.2–1.5 m.

  • Lay one drip irrigation line between each double row. Water will soak about 30 cm on each side, ensuring precise and sufficient supply to the root zone.

  • The main water supply pipes can be either rigid PVC pipes or collapsible pipes. Rigid pipes can be buried underground for long-term use; collapsible pipes are easier to roll up but wear out faster.

  • The drip lines can be thin-walled (0.15 mm–0.20 mm) or thick-walled (0.3 mm or more) for multi-year reuse.

  • The optimal dripper spacing is 20 cm. Each dripper has a flow rate of 1.4 or 2.0 liters/hour.

  • The pump capacity must be calculated based on the total water flow needed per valve.

  • For large plantations, it’s advisable to divide the system into zones with multiple valves so each area can be irrigated in turn.

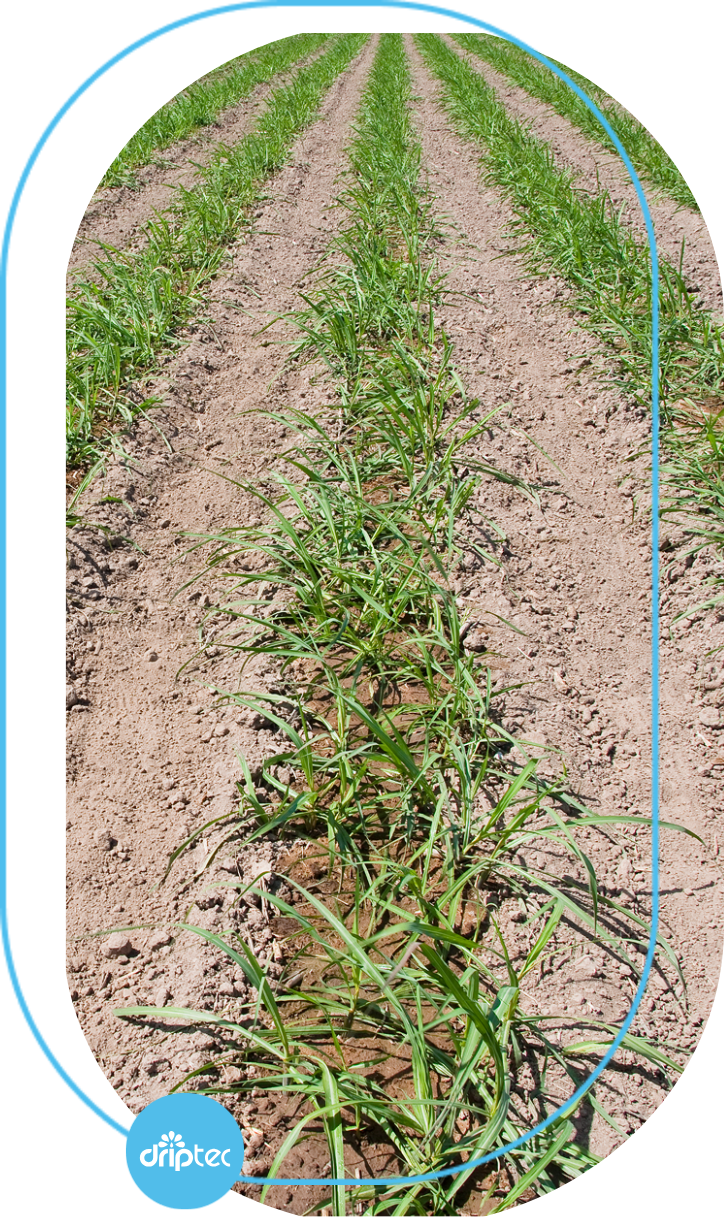

BENEFITS OF AUTOMATIC SUGARCANE IRRIGATION

  • Yield increases significantly, reaching up to 120 tons/ha. The sugarcane quality remains high, with sugar content between 9–11%.

  • Saves a lot of water, reduces fertilizer use and labor for irrigation, lowering overall care costs.

  • Easy to install and operate, with low investment costs.

  • Farmers’ income can increase by tens of millions of VND per hectare.

BENEFITS OF AUTOMATIC SUGARCANE IRRIGATION

IRRIGATION SYSTEM MODEL FOR SUGARCANE

Ống nhỏ giọt tưới mía

Drip Irrigation Pipes for Sugarcane

The irrigation model uses surface-laid pipes. Each sugarcane row (either double or single row) is supplied with one drip irrigation pipe. The drip pipe is connected to the branch pipe through a connector device (commonly called a manifold). Branch pipes can use flat pipes (flat PE pipes or flat PVC pipes). Flat pipes have the advantage of low cost and can be rolled up and stored after each irrigation season.

Ống phun mưa tưới mía

Sprinkler Pipes for Sugarcane Irrigation

The sprinkler pipe irrigation model is also quite commonly applied. This model is easy to install and use, allows visual monitoring, and reduces pipe clogging. Typically, a sprinkler pipe is laid every 3-4 meters. The drawback of the sprinkler pipe method is that it is only suitable when the sugarcane plants are still young.

INSTALLATION COST OF DRIP IRRIGATION SYSTEM FOR SUGARCANE

The cost of a drip irrigation system for sugarcane typically ranges from 4 to 10 million VND per hectare, including drip lines, water pipes, and accessories.

The total cost varies depending on the irrigation model, material quality, level of automation, and the scale of the sugarcane field. Thicker, higher-quality drip lines are more expensive but offer greater durability, potentially lowering the average annual cost over time.

For consultation, detailed calculation, and pricing tailored to your field, please contact Nhà Bè Agri Hotline: 0983 230 879

INVESTMENT EFFICIENCY OF SUGARCANE IRRIGATION SYSTEM

Investing in an automatic irrigation system for sugarcane brings multiple benefits to farmers, including:

  • Increased income by 20–30 million VND per crop per hectare thanks to higher yield, improved cane quality, and reduced costs for fertilizer and labor.

  • Saves water and electricity, giving farmers more time for other tasks.

  • Investment cost decreases over the years, while income and cropping cycles increase.

DETAILS OF MATERIALS AND EQUIPMENT REQUIRED FOR AUTOMATIC SUGARCANE IRRIGATION SYSTEM

Driptec dripline global

Driptec dripline

Driptec dripline is the Thin-wall dripline with some outstanding features such as diverse thickness, emitter spacing and flow rate. Especially the driplines are produced on modern, highly automated technological lines, quality has been verified for more than 10 years in the Vietnamese market.
General information

  • Material: high quality of PE plastic
  • Diameter: 12mm, 16mm
  • Thickness: 0.15mm, 0.20mm, 0.30mm
  • Normal flow rate at 1.0bar: 1.4, 2.0, 3.0, and 4.0lph
  • Emitter spacing: 15cm, 20cm, 30cm
driptec-micro-sprinkler-black 02

Driptec Micro sprinkler

The Driptec Micro sprinkler is researched and produced based on the watering needs of many Vietnamese farmers who grow trees on steep hills and where water is scarce.
From this point, we also believe the product will be suitable and meet most of the fruit irrigation needs that millions of growers globally are applied.
The product is made from 100% virgin plastic combined with UV resistance, corrosion resistance, and chemical resistance.
Driptec sprinklers are especially suitable for watering under fruit trees canopy.
Some important features of the irrigation nozzle:
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
In addition, the Driptec sprinkler is modernly designed and easy to assemble. The product is sturdy and can last up to 10 years.
Stream dripper

Driptec stream driper

Driptec stream driper is easy to position, very suitable for using drip irrigation for plants grown in pots, in bags, greenhouses, cut flowers…

General information

  • Material: high quality virgin plastic.
  • Color: Grey
  • Connection: 3 x 5mm PE pipe.
Nut chia dau nho giot Driptec

2-Way and 4-Way Connectors

Description

  • Widely used in melon irrigation and other crops grown in substrate bags

  • These connectors split the flow from a Rivulis Supertif dripper into two or four separate 3x5mm tubes, allowing each line to irrigate one individual pot

  • Manufactured by Rivulis – durable and reliable

  • Product details: Driptec branching adaptor

Driptec mini sprinkler DR07 6mm connector

Driptec Mini sprinkler DR07

Driptec Mini sprinkler DR07 is designed as a multi-purpose sprinkler that can apply to many vegetable crops and fruit trees with options with or without pressure compensation function, 5/8″ thread connection or 1/4″ bard connector.
We also add one more option for more convenience choice is the valve for each sprinkler.
This product is a good choice for irrigation purposes for medium-life plants, for example fruit trees, citrus trees, vegetables, flowers.
The product is compact, minimalist in design, focusing on high performance: radius and uniformity.
  • Compensate Pressure (PC) feature
  • Anti-insect intrusion feature
  • Irrigation radius adjustment feature
Dripii dripper PCND 2lph

Drippi dripper

Drippi dripper with multi function: PC (Pressure compensation) and PCND (PC none drain), high precision, durable suit for watering greenhouse crops and potted plants.

General information

  • Material: high quality of technical plastic
  • PC flow rate: 2, 4, 8, 12, 25lph
  • PC ND flow rate: 2, 4, 8lph
  • Flow rate identify by color
  • 3mm barb connection
Driptec Soft PE white

Driptec soft PE  3x5mm

Driptec soft PE made in Israel with high quality, it is specially applying in drip irrigation for greenhouse, potted plants…

General information

Size: 3*5mm
Color: black; white/black
Package: roll 500m; 0.5m – 0.6m or 1.0m cutted

Drip tube png

Drip tube

Drip tube made by 100% high quality Virgin plastic to ensure it durable, stable and easy to install on any terrains and crops.

General information

  • Normal size: 16mm, 20mm, 25mm, 32mm with thickness 1.0mm, 1.2mm, and 1.5mm
  • Made by 100% high quality virgin PE plastic
  • Easy to insert dripper and/or fitting.
Driptec Micro Sprinkler connector png

Driptec Micro sprinkler

Like other products, Driptec Micro sprinkler connector are also made from 100% virgin technical plastic with anti-UV additives.
The connectors are designed to be compact and eye-catching. Can be used with Driptec sprinklers as well as most 5/8″ threaded nozzles.
Specifications:
  • Multi Input: LDPE, Soft PVC, Soft PE pipe 4*6mm, 5*7mm, 6*8mm
  • Output: Female thread 5/8mm; 8mm stake
